Brick Block Mould
2.Hardness for shoes:HRC59-62
3.Carburized layer thickness:1.3-1.5mm
4.Unilateral clearance between presser foot and mold cavity: 0.2 mm ≤ Unilateral clearance ≤ 0.4mm
5.Flatness of the whole board: ≤ 0.5mm
6.Deviation in length and width dimensions of a single cavity model: -0.3 to+0.3mm
7.The dimensional deviation of the height (filling depth) of the lower model cavity is ± 0.5mm
Send Inquiry
Product Details ofBrick Block Mould

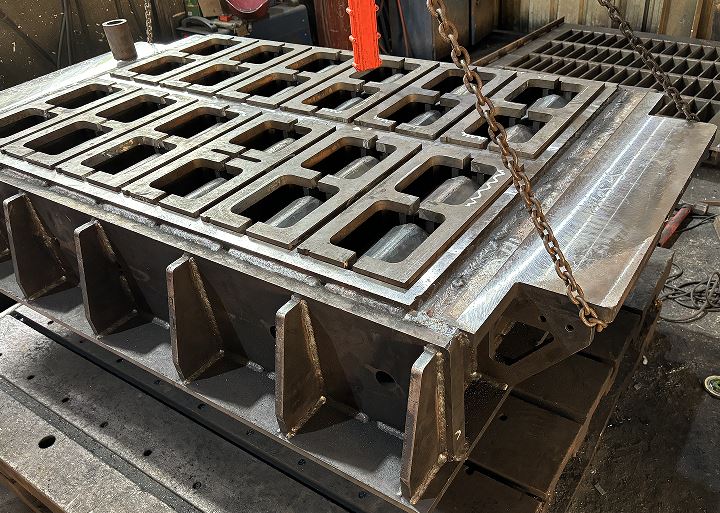

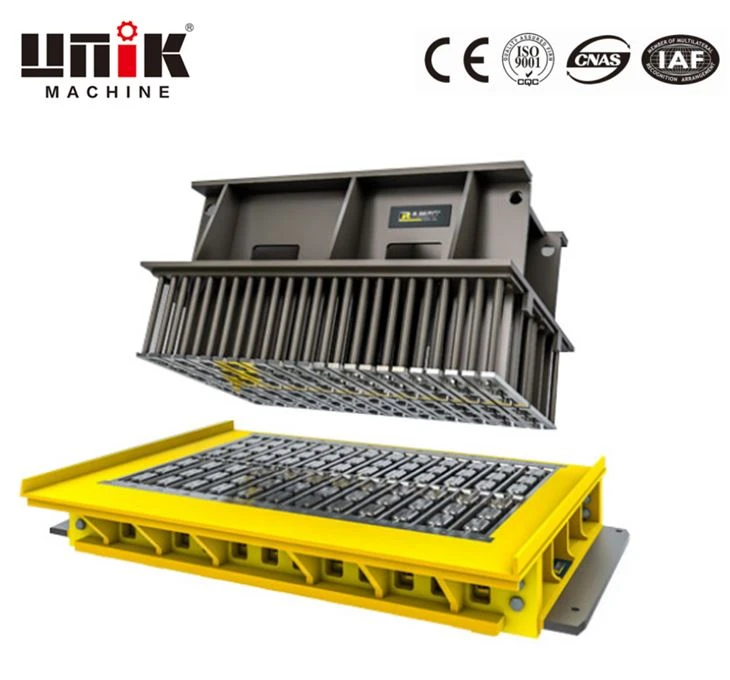

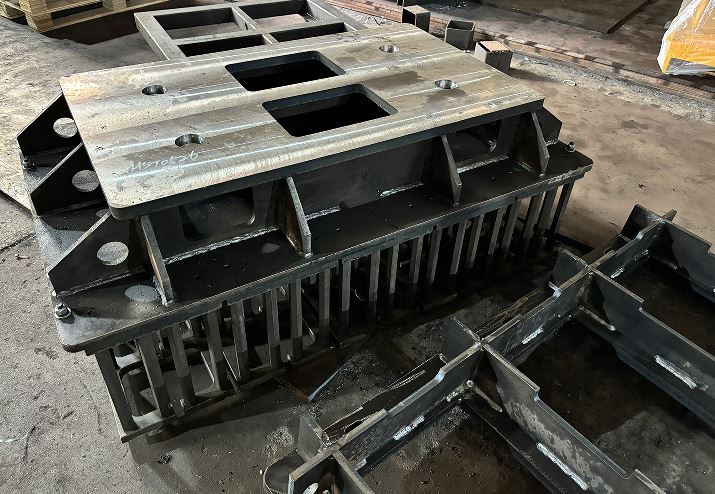

brick block mould
Products Description
Our brick block mould solutions represent decades of engineering excellence combined with cutting-edge manufacturing technology. Each brick block mould we produce begins with carefully selected raw materials. We utilize vacuum-degassed alloy tool steels such as Cr12MoV and 9CrSi, materials specifically chosen for their optimal balance of hardness, wear resistance, and toughness. These premium steels undergo rigorous multi-directional forging processes that break down coarse internal grain structures, creating uniform, fine-grained material flows that serve as the foundation for exceptional durability.
In the competitive landscape of modern construction, the quality of every structure begins with the precision of its fundamental components. At Fujian Unik Mould Technology Co., Ltd., we understand that the brick block mould is far more than a simple forming tool-it is the heart of your entire production operation, determining dimensional accuracy, surface finish, structural integrity, and ultimately, the profitability of your manufacturing line.
Grass Paver Mould Technical Highlights
Choose the plan that suits you best.
Precision Manufacturing
High-quality steel with a wear-resistant surface treatment to ensure long-lasting durability.Customizable options for different block shapes and sizes to suit specific project needs.
Quality control
More than 20 checkpoints: 3-D scanning, ultrasonic & magnetic-particle crack detection, press-foot clearance gauge and pilot-run on our own block machine-only concrete hollow blocks moulds that pass all tests leave the plant.
Surface Engineering
CVD/PVD nano-coatings (TiN, TiCN, CrN) ≥ HV 2000 for extreme abrasion
· Laser-hardened "skin" creates a hard outer shell while the core stays tough
· Optional nitride layer 0.3-0.5 mm for thin-web or high-impact blocks
Material & Pre-treatment
We use vacuum-degassed low-alloy tool steel (Cr12MoV, 9CrSi, etc.) that is multi-directionally forged and spheroidising-annealed to create a uniform carbide network-ideal for later vacuum quenching (60–63 HRC) and multi-tempering. Optional deep-cooling (-196 °C) converts retained austenite and adds 30 % extra life.
Success Case
Compatible mounting dimensions let our Paver block moulds drop straight onto Hess, Masa, Tiger, Zenith, Quadra and most global presses without frame modification. Integrated vent channels and polished draft angles guarantee clean release every cycle, reducing reject rates below 1 % and eliminating costly post-finishing. From the first CAD sketch to final CMM scan, every parameter is logged in our MES-full material traceability, heat-treatment certificates and remote diagnostic support included.
Over 15 Years of Brick Machine Manufacturing and Mold Production Experience
With a Dedicated Mold Manufacturing Workshop for Producing Various Brick Machine Mold Samples
Our factory

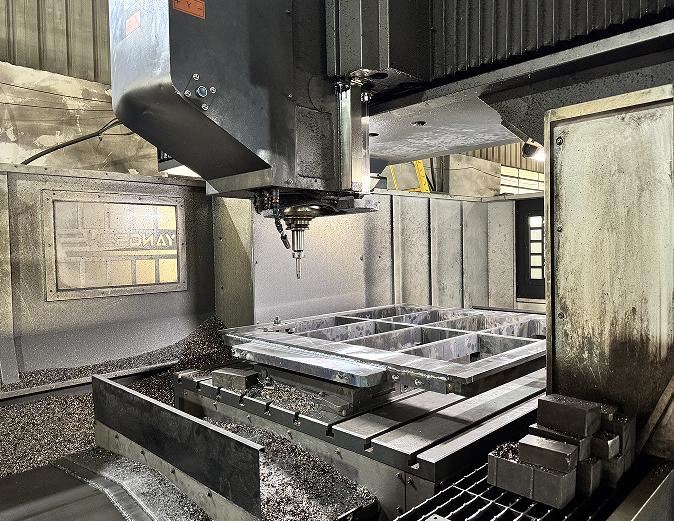

Manufacturing
Delivery
workshop
Process
At Fujian Unik Mould Technology Co., Ltd., we don't merely manufacture brick block mould equipment-we engineer production solutions that transform raw concrete into profitable, precision-built products. Our commitment to material science excellence, manufacturing precision, and comprehensive customer support ensures that every brick block mould leaving our facility delivers exceptional performance from the first cycle to the last. Partner with UNIK and discover how superior mould technology can elevate your entire operation.
