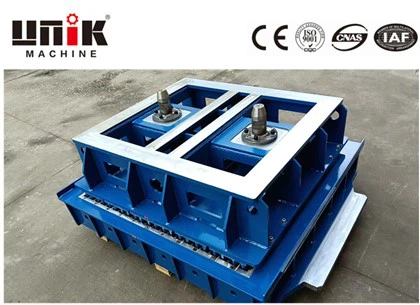

Ceiling Block Mould

At Fujian Unik Mould Technology Co., Ltd., we are committed to extending the lifespan of our hollow brick moulds through innovative processes and precision machining. Our standard hollow brick moulds, including our Ceiling Block Moulds, are designed with meticulous attention to detail. The core assembly is manufactured with high precision to match perfectly with the bolted single cores. These cores undergo surface hardening treatment, enhancing their durability and resistance to wear. They are precisely bolted to the core support bars, ensuring a secure and stable fit. Our moulds feature a modular design that allows for easy replacement and interchangeability of components. The removable bolted connection between the mould frame and the core assembly enables simple and quick replacement of individual cores, and even entire core assemblies can be interchanged if needed. This design flexibility ensures that maintenance and repairs can be carried out efficiently, reducing downtime and increasing overall productivity. Our Ceiling Block Moulds are designed to meet the highest standards of quality and performance, ensuring long-term reliability and efficiency in your production processes.

What You Get

1. Rigidity
The moulds must have sufficient rigidity to maintain dimensional accuracy and stability during the production process.
2. Guidance
Proper guidance mechanisms ensure smooth operation and consistent production quality.
3. Ejection Mechanisms
Efficient ejection mechanisms facilitate smooth demoulding, ensuring that the final products are removed from the moulds without damage.
4. Positioning and Gap Sizes
Precise positioning methods and optimal gap sizes ensure accurate and consistent production.
5. Replaceable Wear Parts
The moulds should be designed with easily replaceable wear parts to ensure straightforward maintenance and minimal downtime.

Serviceable Construction

High-wear zones use replaceable liners or custom mould inserts. A typical core insert change can be done without removing the full cassette, keeping maintenance windows short. Fasteners are standardized; lubrication points and debris paths are accessible from the machine side.

Machine Compatibility

Bolt patterns and alignment blocks are built to the customer's machine family (e.g., Hess, Masa, Tiger, QGM/Zenith, etc.). We match stroke, clamping and pallet interfaces so the mould drops into existing tooling without rework. Drawings follow ISO 2768-m for general tolerances unless otherwise specified.
