Concrete Block Casting Mould
concrete block casting mould
Product Overview

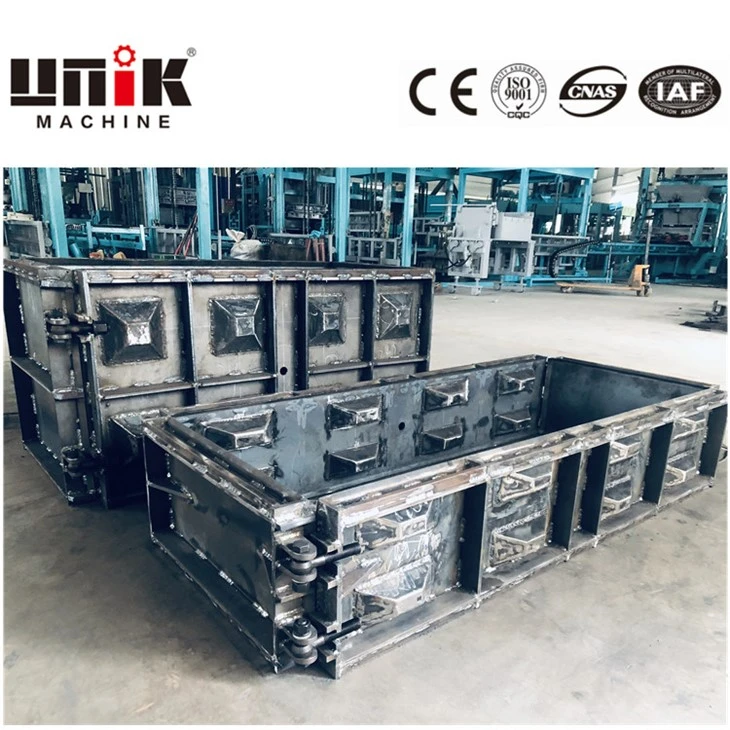

In the world of pre-cast concrete, the Concrete Block Casting Mould is the silent sculptor that decides whether your Lego-style retaining wall will look factory-perfect or riddled with blemishes. UNIK's latest Concrete Block Casting Mould is engineered around one critical mission-delivering a mirror-smooth face in a single pour. Its open-top, split-frame body is cast from vacuum-hardened alloy steel and precision-machined to ±0.3 mm, but the real magic happens when the high-frequency poker vibrator is inserted: integrated vent ribs and rounded corners guide trapped air upwards, eliminating honey-comb and pin-holes before the concrete begins to set. The result is a bubble-free, glossy surface that needs no post-finishing, no patching and no apologies. Thanks to quick-release side latches the mould strips clean after only 8 hours of initial cure, so blocks move straight to the stacking yard while the line starts the next cycle. Whether you're casting 300 mm garden units or 600 mm heavy-duty soil retainers, the same Concrete Block Casting Mould base accepts interchangeable end plates, giving you unlimited lengths without buying new tools. In short, UNIK puts a casting studio in your yard-so every block you pour stacks straight, locks tight and looks flawless from day one
Key advantages
1.Air-free surface quality
Integrated clamp slots accept standard 35 mm or 50 mm poker vibrators
Directional ribs guide bubbles upward, eliminating honey-comb and pin-holes
Result: Ra ≤ 0.4 µm face ready for direct stacking or clear-coat sealing
2.Fast-turn, 8-hour cycle
Wall thickness 6 mm, vacuum-hardened to 60-62 HRC → withstands 200 t clamp force and 12,000 vpm vibration
Quick-release side locks → strip time < 5 min per block
Minimum demould strength reached in 8 h @ 20 °C (or 4 h with low-heat cement)
3.Modular Lego geometry
Male/female interlock cast in one pour-no secondary machining
Tongue-and-groove tolerance ±0.3 mm ensures perfect stack alignment
Produce 300 mm, 400 mm or 600 mm widths simply by changing end plates
4.Vibration-friendly details
Rounded internal corners allow vibrator head to glide along wall → 100 % concrete coverage
Vent slots at top edge evacuate air without grout loss
Optional rubber sealing strip for wet-cast/zero-slump mixes
Applications

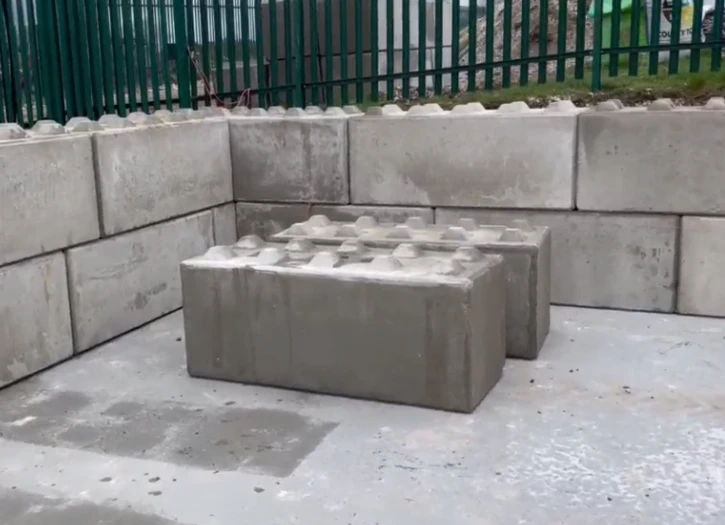

Large concrete block moulds are specialized tools designed for the production of retaining walls. These moulds play a crucial role in facilitating the efficient and high-quality production of retaining walls. By utilizing these moulds, manufacturers can quickly produce retaining walls that are uniform in shape and size. This not only ensures consistency in the final product but also significantly reduces the labor and material costs associated with traditional methods, thereby enhancing overall production efficiency.
Packaging & Shipping
Moulds are coated against rust, wrapped, and packed in sturdy export crates. Cushioning and tilt indicators protect them during transport. Typical delivery is 15–20 working days, with faster shipping available when needed.
After-Sales Support
- 12-month warranty for defects.
- Replacement inserts and refurbishment options.
- Guidance for installation and first production runs.
- Maintenance tips to extend mould life.
Our factory
Manufacturing
Delivery
workshop
Process

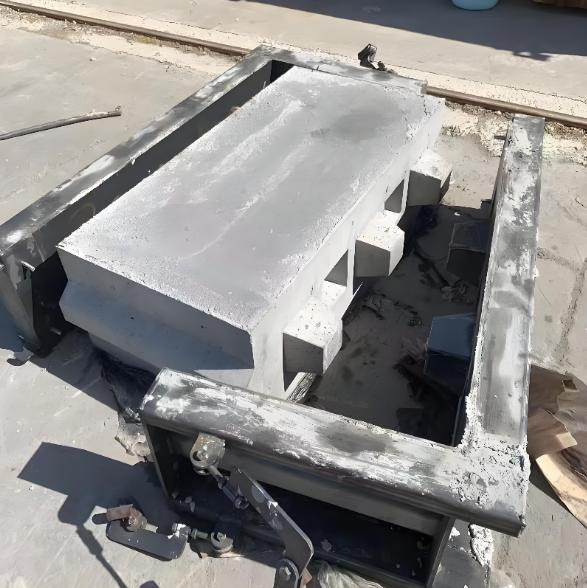

The "open-top, open-bottom" format is the core value of this mould system: it eliminates the traditional need to distinguish "up" from "down". Because the frame has no fixed lid or base, it can simply be laid on any level surface-no orientation checks, no alignment dowels. Concrete can then be poured from whichever side is most convenient for the site layout, crane reach or batch-plant logistics, so contractors gain precious minutes on every cycle.
A release-grade plastic sheet or smooth panel placed underneath the frame:
creates the finished face of the element, guaranteeing a flat, blemish-free surface
prevents contamination from soil or gravel, removing cleaning time
allows the mould to be repositioned immediately after stripping, keeping the pour rhythm uninterrupted.
The result is a practical balance between speed and quality: rapid set-up, flexible casting, and a consistently smooth soffit without extra finishing work.
