Paver Block Moulds
2.Hardness for shoes:HRC59-62
3.Carburized layer thickness:1.3-1.5mm
4.Unilateral clearance between presser foot and mold cavity: 0.2 mm ≤ Unilateral clearance ≤ 0.4mm
5.Flatness of the whole board: ≤ 0.5mm
6.Deviation in length and width dimensions of a single cavity model: -0.3 to+0.3mm
7.The dimensional deviation of the height (filling depth) of the lower model cavity is ± 0.5mm
Send Inquiry
Product Details ofPaver Block Moulds

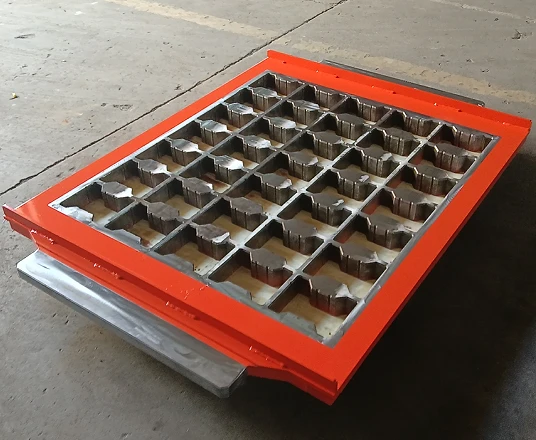

paver block moulds
In the competitive world of hardscape manufacturing, the precision of your Paver block moulds determines whether your finished plaza, driveway or waterfront promenade looks premium or patchy. At Fujian Unik Mould Technology Co., Ltd., we engineer every Paver block moulds set as a high-wear, high-precision tool-not a commodity accessory. Carved from vacuum-degassed Cr12MoV or 9CrSi alloy steel, each cavity is vacuum-hardened to 60–63 HRC, nitrided to 0.4–0.6 mm depth and finish-ground to ±0.2 mm tolerance, so every 60 mm, 80 mm or 100 mm paver emerges with razor-sharp chamfers, perfect planarity and a surface ready for immediate sealing or direct trafficking.
Advanced Manufacturing Equipment

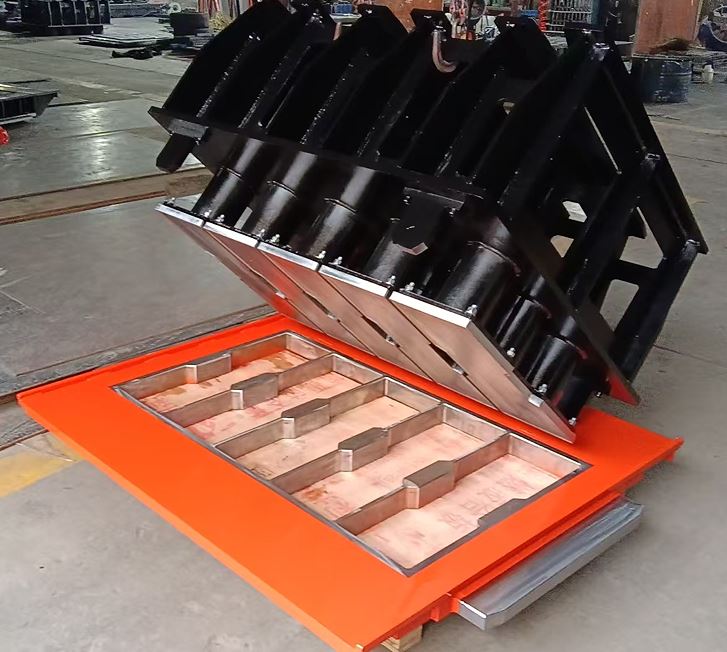

Our modular Paver block moulds philosophy means one universal sub-frame accepts dozens of interchangeable cavity inserts: switch from standard rectangular pavers to wave-profile marina blocks, permeable eco-stones or interlocking herringbone patterns in under fifteen minutes, without lifting the press head. Quick-release tamper plates and side-liner systems cut maintenance downtime to minutes, while laser-clad wear strips and optional TiCN nano-coatings push service life past 100,000 cycles even under quartz-rich, abrasive aggregates.

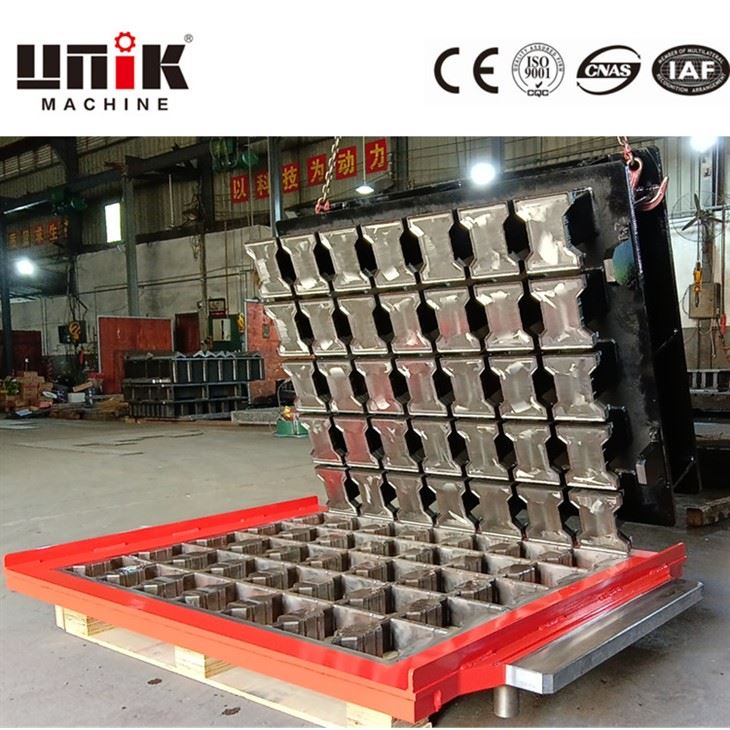

Interlocking Paver block Mould Technical Highlights
Choose the plan that suits you best.
Rational structure with high efficiency and automation compatibility
low-carbon alloy, high-strength carburizing steel → superior wear resistance after case-hardening
Dimensional accuracy and smooth surfaces
0.5–0.6 mm → ensures clean demolding and sharp edges on every grass slot
Ease of manufacture, extended lifespan, and cost-effectiveness
imported high-strength structural steel → long service life, minimal deformation
Process-appropriate and economically sound design
wire-cut EDM machining → perfectly square corners and mirror-smooth sidewalls for both aesthetic appeal and reliable function
Our factory
Manufacturing
Delivery
workshop
Process
Compatible mounting dimensions let our Paver block moulds drop straight onto Hess, Masa, Tiger, Zenith, Quadra and most global presses without frame modification. Integrated vent channels and polished draft angles guarantee clean release every cycle, reducing reject rates below 1 % and eliminating costly post-finishing. From the first CAD sketch to final CMM scan, every parameter is logged in our MES-full material traceability, heat-treatment certificates and remote diagnostic support included.
When you specify UNIK Paver block moulds, you invest in faster change-overs, lower lifetime cost and a production line that delivers flawless, stack-ready pavers shift after shift. Welcome to precision that pays for itself-welcome to UNIK.
