curb molds for concrete

What Is a Curb Mold for Concrete?

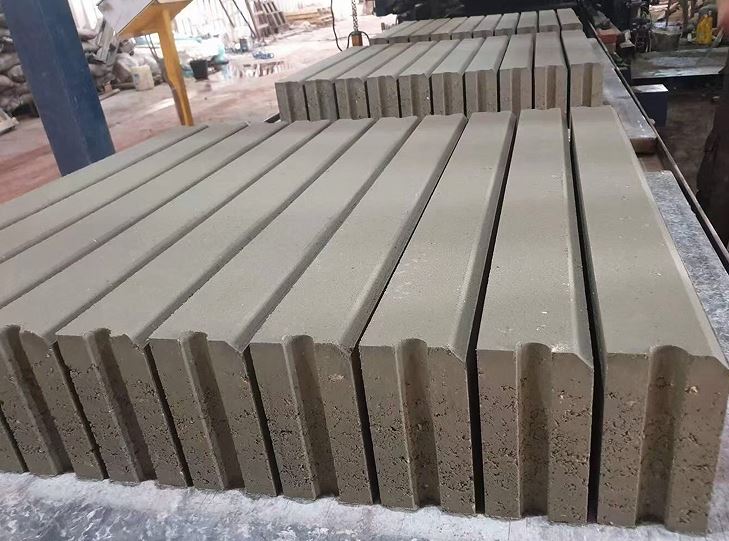

A curb mold is a steel tool that shapes wet concrete into finished curbstones. The mold is mounted onto a block making machine or used in precast production. Concrete is poured into the mold cavity, compacted by vibration and pressure, then ejected as a finished curb unit.

Unlike standard block molds, curb molds have longer, narrower cavities. The length-to-width ratio is typically 5:1 or greater. This geometry creates unique challenges: the concrete must fill the entire cavity evenly, the ejection mechanism must release a long product without breaking it, and the mold must maintain straightness across its full length.

UNIK curb molds address these challenges through precision machining, proper draft angles, and reinforced construction.

Types of Curb Molds for Concrete

UNIK manufactures curb molds for several common profiles used in road construction, drainage systems, and landscaping.

Straight Curb Molds – Produce standard rectangular curbstones with flat backs and faces. Used for road edges, parking lots, and pedestrian walkways. The mold cavity is simple but requires precise straightness across the entire length.

Tapered Curb Molds – Produce curbstones with sloping faces. The taper allows vehicles to mount the curb at driveways and intersections. The mold cavity has an angled wall that requires careful machining to maintain consistent slope.

Round-Top Curb Molds – Produce curbstones with rounded upper surfaces. Used in pedestrian areas, parks, and landscaping where a softer appearance is desired. The mold cavity features a curved top profile.

Drainage Curb Molds – Produce curbstones with integrated channels or openings. Water flows through these openings into storm drains. The mold cavity includes cutouts or recesses that form the drainage openings.

Barrier Curb Molds – Produce taller curbstones with steep faces. Designed to prevent vehicles from leaving the roadway. Used along highways and bridge approaches. The mold cavity is deeper than standard curb molds.

Mountable Curb Molds – Produce low-profile curbstones with gentle slopes. Vehicles can drive over these curbs in emergency access lanes. The mold cavity has a gradual slope on both sides.

Key Design Features of UNIK Curb Molds

Every UNIK curb mold is built around a set of engineering standards that address the specific demands of curb production.

Reinforced Cavity Walls – Curb mold cavities are longer and narrower than block mold cavities. This geometry creates higher stress on the cavity walls during ejection. UNIK uses thicker steel sections and reinforced designs to prevent flexing and maintain straightness.

Precision Draft Angles – Proper draft angles are essential for clean ejection of long curbstones. UNIK machines consistent draft angles along the entire cavity length to prevent sticking and edge damage.

Straightness Control – A curb mold that is not straight produces curbstones that do not align during installation. UNIK holds whole-mold straightness to ≤0.5mm across the full length. Every mold is checked on a surface plate before shipping.

Smooth Ejection Surfaces – Rough cavity surfaces cause curbstones to stick, leading to chipped edges and slow cycle times. UNIK finishes cavity surfaces to Ra 1.6 or better, ensuring clean release every cycle.

Wear-Resistant Steel – UNIK curb molds are manufactured from low-carbon alloy steel with carburizing heat treatment. The surface reaches HRC58-62. The core stays tough at HRC35-40. Hard surface resists abrasion from concrete aggregates. Tough core absorbs vibration without cracking.
