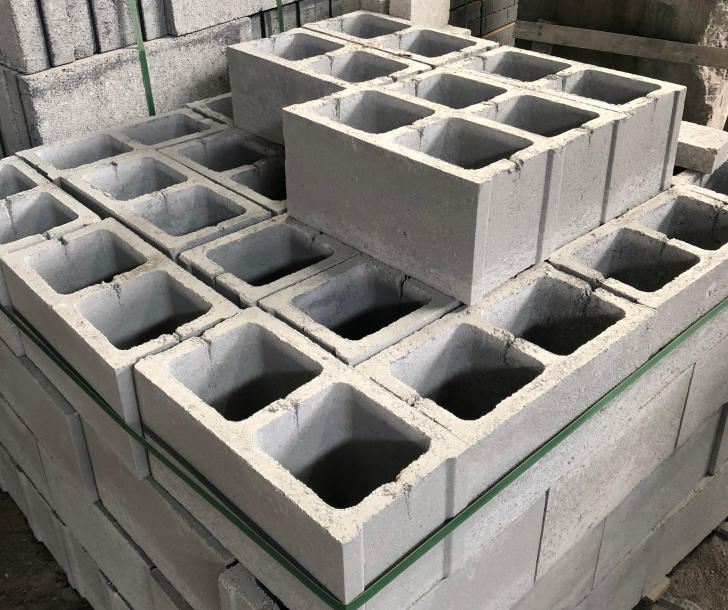

Hollow Concrete Block Mold
2.Hardness for shoes:HRC59-62
3.Carburized layer thickness:1.3-1.5mm
4.Unilateral clearance between presser foot and mold cavity: 0.2 mm ≤ Unilateral clearance ≤ 0.4mm
5.Flatness of the whole board: ≤ 0.5mm
Send Inquiry
Product Details ofHollow Concrete Block Mold
Hollow Concrete Block Mold
Product Overview
A hollow concrete block mold is a precision-engineered steel tool that shapes concrete into hollow masonry units. The mold determines the dimensional accuracy, core alignment, surface finish, and structural integrity of every block produced. As the critical component in any block-making operation, mold quality directly impacts production efficiency, waste rates, and final product consistency.
UNIK has been designing and manufacturing hollow concrete block molds since 2010. Located in Quanzhou, Fujian Province-a region renowned for its manufacturing excellence-we combine advanced German heat treatment technology with precision CNC machining to deliver molds that meet international standards.
Frequently Asked Questions (FAQ)
Q1: How long should a hollow concrete block mold last?
A: Under normal production conditions with standard concrete mixes, a properly manufactured steel mold should deliver 80,000 to 100,000 cycles. This translates to approximately 18-24 months for single-shift operations or 8-12 months for double-shift operations. Plastic molds, by comparison, typically last only 500-2,000 cycles .
Q2: Why do some molds crack at 30,000 cycles?
A: Premature cracking is typically caused by one of three factors:
Wrong steel grade: Using soft steel like 40Cr or Q235 instead of 42CrMo
Inadequate heat treatment: Full hardening makes the entire mold brittle
Sharp corners: 90-degree internal corners concentrate vibration stress
UNIK addresses all three issues with proper material selection, carburizing heat treatment, and 3-5mm corner radii.
Q3: Can UNIK make molds for older or uncommon machines?
A: Yes. We do not require your machine to be "current" or in our database. Provide a drawing, an old mold, or clear photos with measurements, and we will reverse-engineer a mold that fits exactly. We have built molds for machines from the 1980s and for brands no longer in production.
Q4: What is the minimum order quantity?
A: One set. We welcome trial orders. Start with a single mold to evaluate quality and performance before committing to larger volumes.
Q5: What is your lead time?
A: 20-25 working days after drawing approval. Expedited shipping is available for urgent requirements.
Q6: Do you provide technical support for installation?
A: Yes. We provide installation guidance, troubleshooting support, and video call assistance if needed. Our support continues for the life of the mold.
Q7: Can you refurbish worn molds?
A: Yes. We offer refurbishment services including surface re-hardening, core pin replacement, and cavity repair to extend mold life.
Q8: What payment terms do you offer?
A: Standard terms are 30% deposit and 70% balance before shipping. Returning customers may discuss credit terms.
Q9: How do I know if a mold will fit my machine?
A: Send us your machine brand and model, or a photo of the machine nameplate, or a drawing of your current mold. We will verify compatibility before production.
Q10: What is the difference between plastic and steel hollow block molds?
A: Plastic molds are suitable for DIY, small-scale, or temporary production (500-2,000 cycles). Steel molds are designed for industrial, high-volume production (80,000-100,000 cycles). For commercial brick plants, steel molds are the only practical choice .
Customer Case Studies
Case Study 1: Philippine Brick Manufacturer
Customer Profile: Medium-scale brick plant producing 4,000 hollow blocks per day, two shifts, six days per week
Challenge: The customer was purchasing molds from three different suppliers, experiencing cracks at 25,000-30,000 cycles. Each failure required 2-3 days of downtime for replacement.
Solution: UNIK analyzed a failed mold and identified three problems: wrong steel grade (40Cr instead of 42CrMo), no real heat treatment, and sharp internal corners. We manufactured one set of 8x8x16 hollow block molds with two cavities, using 42CrMo steel, carburizing heat treatment, and 3-5mm corner radii.
Result: The UNIK mold achieved 94,000 cycles-more than triple the previous molds' lifespan. The customer has since ordered 20 additional sets and reduced mold-related downtime by 70%.
Case Study 2: Nigerian Block Plant
Customer Profile: Growing block plant serving local construction market
Challenge: The customer was buying from a trading company that claimed to offer "hardened steel molds." Actual performance was poor, with molds wearing unevenly and producing tapered blocks after 20,000 cycles.
Solution: UNIK provided a custom hollow block mold with tool steel for the customer's abrasive aggregate mix. We included replaceable core pins and a reinforced pin plate.
Result: The mold delivered 88,000 cycles. The customer now orders replacement cavities and refurbishment services annually, avoiding the cost of completely new mold sets.
Case Study 3: Indonesian Contractor
Customer Profile: Road construction contractor needing on-site block production
Challenge: The contractor needed a specific hollow block size for drainage channels-not a standard dimension. Local suppliers either couldn't produce custom sizes or quoted excessive lead times.
Solution: UNIK designed and manufactured a custom hollow block mold based on the contractor's drawings. Total time from drawing approval to shipping was 23 days.
Result: The contractor completed the drainage project on schedule. The UNIK mold has been used for three subsequent projects and remains in good condition.
After-Sales Support
Our relationship with clients continues after delivery. We provide:
1.A 12-month warranty covering defects in materials or workmanship.
2.Maintenance guidance and operational advice to maximize mold output.
3.Refurbishment and core replacement services to extend the service life of existing molds.
4.Technical support for installation and troubleshooting.
This support structure helps procurement teams minimize total cost of ownership and maintain production continuity.
Manufacturing
Delivery
workshop
Process
Global Export Experience
Founded in 2010 and located in Quanzhou, Fujian Province, UNIK has accumulated over 15 years of export experience. We serve brick plants and construction material manufacturers in 28 countries across Southeast Asia, the Middle East, Africa, and Russia.
